Ground protection mats
About Terra LD
Terra LD is a high-performance reusable ground protection mat designed for access roads, working platforms, and protection of sensitive ground surfaces. It enables safe movement of vehicles and pedestrians while preventing ground damage, rutting, and surface degradation.
Terra LD is part of the modular TERRA GP SYSTEMS, engineered to deliver durable, reusable, and environmentally responsible solutions for demanding ground conditions.
A Trusted Partner with Years of Experience.
Ground protection mats TERRA LD
Key Benefits
Lightweight and Easy to Handle
- Designed for manual installation by two people, without heavy machinery
- Fast deployment and removal support multiple reuse cycles and reduce labor costs
High Load Capacity
- Suitable for vehicle loads up to 80 tones*
- Excellent load distribution minimizes ground pressure and settlement
Exceptional Durability
- Manufactured from high-quality polyethylene
- Resistant to UV radiation, moisture, chemicals, oils, and temperature extremes
- Engineered for long-term, repeated reuse in harsh environments
Dual-Sided Anti-Slip Surface
- One side optimized for vehicle traction
- Reverse side designed for safe pedestrian access
- Other option available
Modular Connection System
- Mats connect quickly to form reusable access roads, routes, or working platforms
- Robust connection design ensures stability even under demanding conditions
Environmentally Responsible
- Manufactured from 100% recyclable material
- Designed for repeated reuse, reducing waste and environmental impact
- Ideal for environmentally sensitive or protected areas
3 mm
Pedestrian surface
5 mm
Tire surface
Ground protection mats TERRA LD
Why Reusable Matters?
Reusable ground protection:
- reduces total project cost
- lowers material waste
- improves sustainability metrics
- delivers consistent performance over time
Unlike single-use or short-life solutions such as plywood or light connector-based plastic mats, Terra LD is designed for repeated deployment across multiple projects without loss of structural performance.
Material & Solution Comparison
| Heavy Steel Plates | Injection-Moulded Plastic Mats | Plywood / Timber Boards |
|---|---|---|
|
- Extremely heavy and equipment-dependent
- High transport and handling costs - When wet slippery - Limited adaptability - In rare cases connected, normally overlapped. Trip hazard and tire puncture problems. |
- Connector systems are the weakest point
- Fail under poor ground conditions and high loads - Normally ideal for stadiums where ground is flat and compacted |
- Weather-sensitive and moisture-absorbing
- Delaminate and degrade quickly - Deforesting |
Terra LD ground protection mats
Terra LD mats are manufactured from high-performance polyethylene PE-HD, making them ideal for reusable ground protection systems.
Polyethylene combines high mechanical strength with flexibility, allowing effective load distribution without permanent deformation.
It is fully resistant to water, chemicals, UV exposure, and extreme temperatures, ensuring consistent performance throughout repeated reuse cycles.
Compared to steel, timber, or injection-molded plastics, polyethylene delivers the best balance of durability, weight, reusability, and long service life.
At the end of lifetime totally recyclable.
Applications:
- Construction and infrastructure projects
- Reusable access roads for light and heavy vehicles
- Events and venues with recurring installations
- Parks, landscaping, and green areas
- Utilities and maintenance works
- Emergency and service access routes
- Military use
Ground protection mats

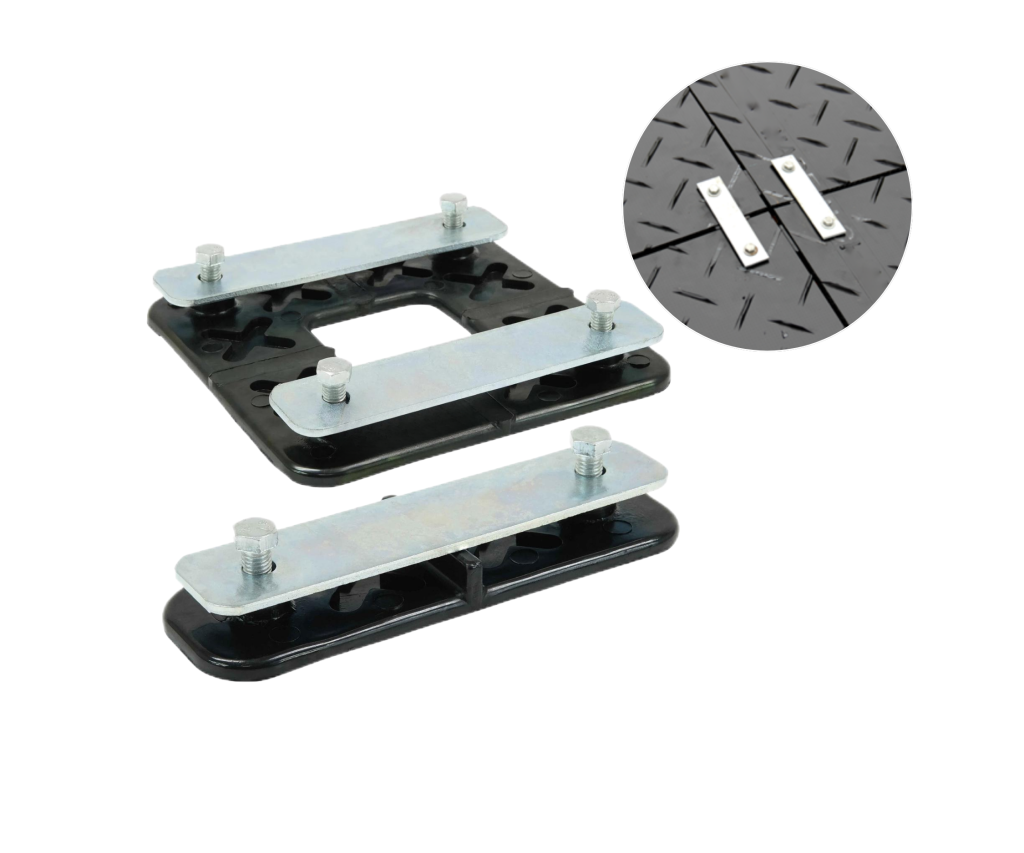

Connection system
2way and 4 way PU-connectors with bolts and top metal bar
Ground protection mats TERRA LD

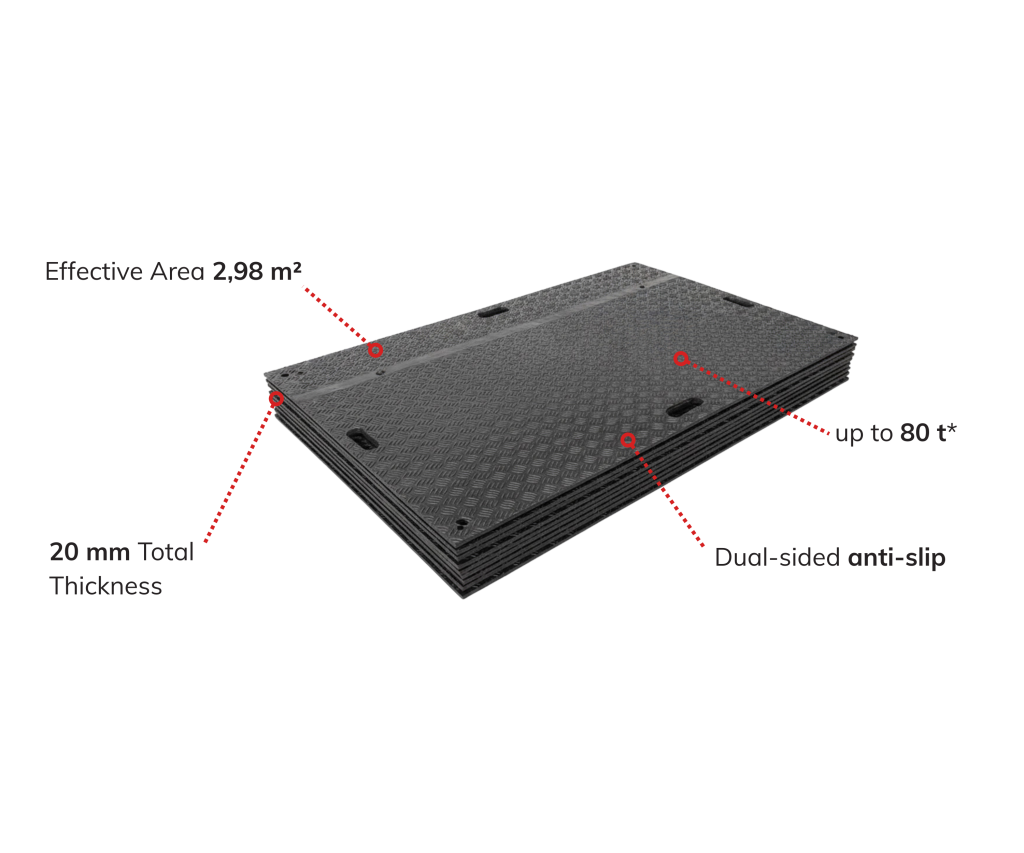

General Information & Specifications
| Overall dimensions | 2440 x 1220 mm | |
|---|---|---|
| Effective Area | 2,98 m² | |
| Total Thickness | 20 mm | |
| Core Thickness | 12,7 mm | |
| Weight | approx. 40 kg | |
| Load Capacity | up to 80 t* | |
| Material | HD polyethylene | |
| Surface | Dual-sided anti-slip | |
| Colour | Standard black (other colours on request) | |
| Recyclability | 100% recyclable | |
*Carring ground capacity depend, i.a. on factors such as temperature, soil class, soil properties, soil bearing capacity, contact areas, dynamics & direction of force application. Before use, we recommend a professional assessment of the soil bearing capacity by the user or a soil analysis by a surveyor or expert.
Ground protection mats TERRA LD
Safety & Performance
TERRA LD mats are engineered for demanding environments, offering unmatched safety, durability, and load-bearing performance.
Key Safety Features
- Anti-slip surface: Unique TERRA TRACTION™ pattern provides superior grip for vehicles and personnel—independently tested and based on tyre manufacturer traction data.
- Prevent bogging & delays: Keeps vehicles and workers moving, even in poor ground conditions.
- No water absorption: Chemically inert and non-permeable—resistant to fuel, oils, and contaminants.
- Easy to decontaminate: Smooth surface structure allows for quick and thorough cleaning.
- Fire rated: Compliant with UL 94HB safety standards.
